Application:

The H200M is designed for hot stamping of caps or cosmetic bottles at high production speeds. Reliability and speed make the H200M ideal for off-line or in-line 24/7 production.

Description:

1.Automatic loading system with conveyor and vacuum robot.

2.Anti-static dust cleaning before stamping

3.High accuracy indexer from Japan

4.Auto pre-registration when there is registration point in the mouth.

6.Well built machine house with CE demand for safety production.

7.Reliable PLC control with touch screen display.

Options:

1. Fully automatic loading with elevator system.

2. Servo driven stamping head with stamping depth adjustable for individual jigs .

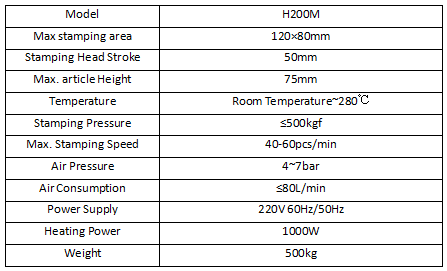

Tech-data:

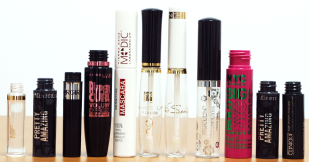

Samples:
